Haltech Nexus R5 VCU + Universal Tefzel Wire-in Harness
Regular price
$5,895.00
Shipping calculated at checkout.
VCU OVERVIEW
Nexus R5 is Haltech's flagship product, combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the-art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors/coils, trans brake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low-speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low-side drive outputs)
- 12 x low current ignition outputs (can be used as low-side drive outputs)
- 8 x low-side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
HARNESS OVERVIEW

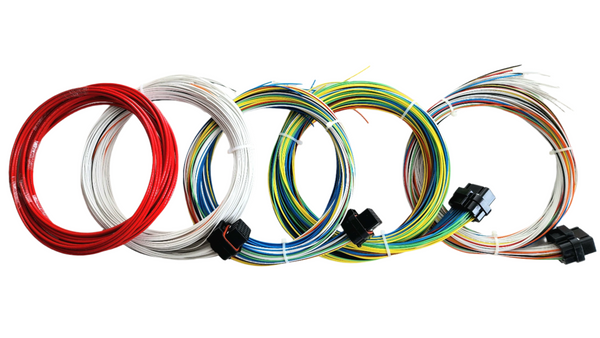

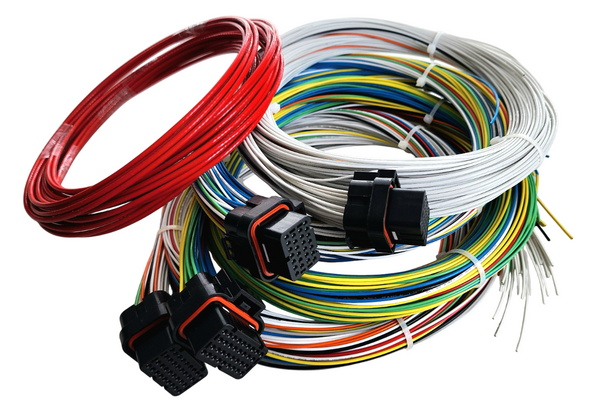

Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other.
Whether embarking on a new project or seeking to upgrade and replace your outdated PVC harness, this loom will provide a reliable foundation for a motorsport-grade build, ensuring unwavering performance in the most demanding environments.
Why buy a PVC wire version rated to only 100 C when you can start with motorsport/military grade wires rated to 150 C and will withstand harsh vibration and chemicals for a similar price?
Pinned to match Haltech's Nexus R5 VCU's detailed wiring diagram for a confusion-free installation process. (Pin Placement sheet provided).

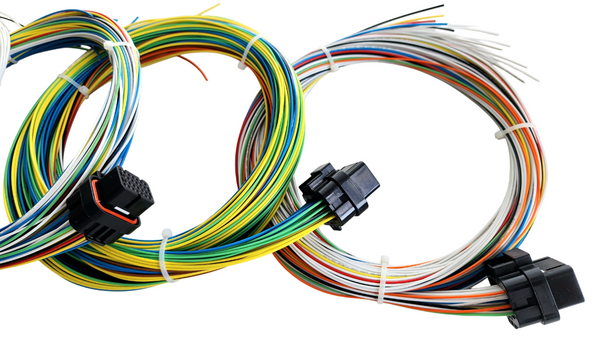

- Features AMP Superseal connectors
- Machine-crimped Superseal terminals

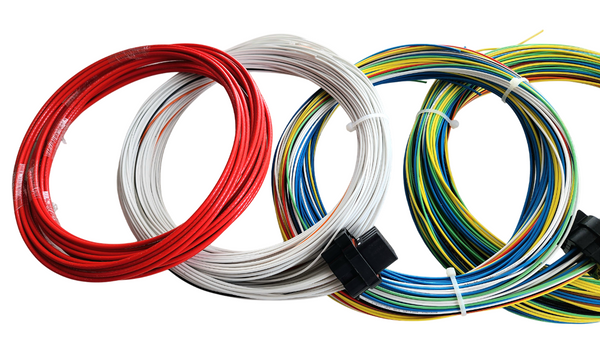

- MIL-22759/16 Tefzel ETFE wire used in Military and Aerospace
- Terminal Pin placement sheet provided
