Motec M130 Motorsport Wiring Loom

MoTeC M130 Motorsport Wiring Loom

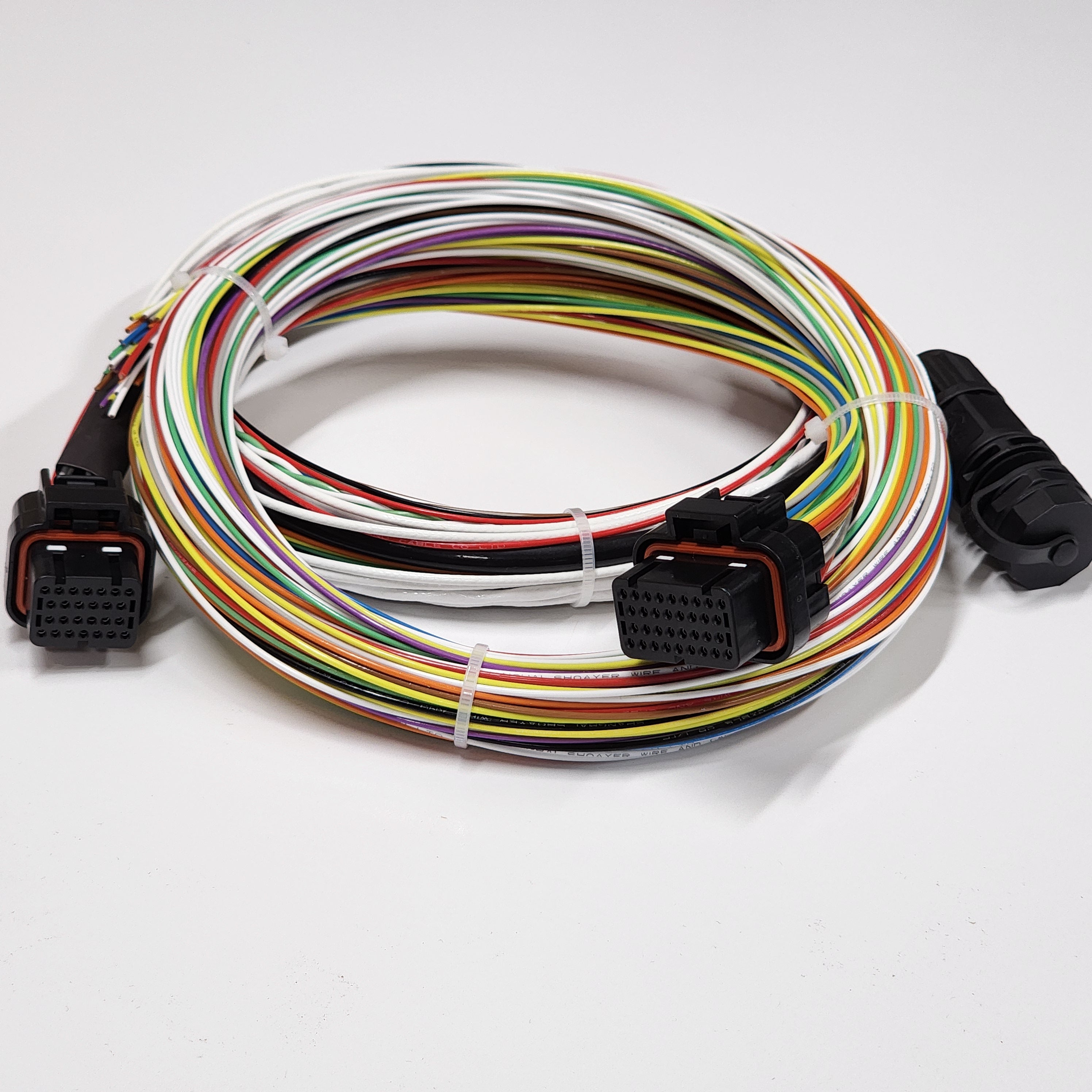

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the MoTeC M130 Engine Control Unit.

This wiring loom is designed for builders who require a reliable, professional-grade electrical foundation for a MoTeC M130–controlled engine. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for high-performance and motorsport applications where heat, vibration, and electrical noise are part of the operating environment.

Whether you’re completing a ground-up race build, a modern engine conversion, or a high-end street car, this loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for MoTeC M130

This loom is pinned exclusively for the MoTeC M130 ECU. Every circuit is allocated correctly for the ECU’s inputs, outputs, power supply, and high-speed communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports accurate sensor data, stable ECU operation, and long-term reliability.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to modern motorsport environments.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This M130 loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for engine layout, sensor selection, CAN integration, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, and additional provisions can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Modern motorsport builds (circuit, drag, endurance, time attack)

• Engine swaps and late-model conversions

• Vehicles utilising CAN-based engine and chassis systems

• Professional workshops and motorsport fabricators

This is not a vehicle-specific plug-and-play harness. It is intended for custom installations where control, reliability, and electrical integrity matter.

What’s Included

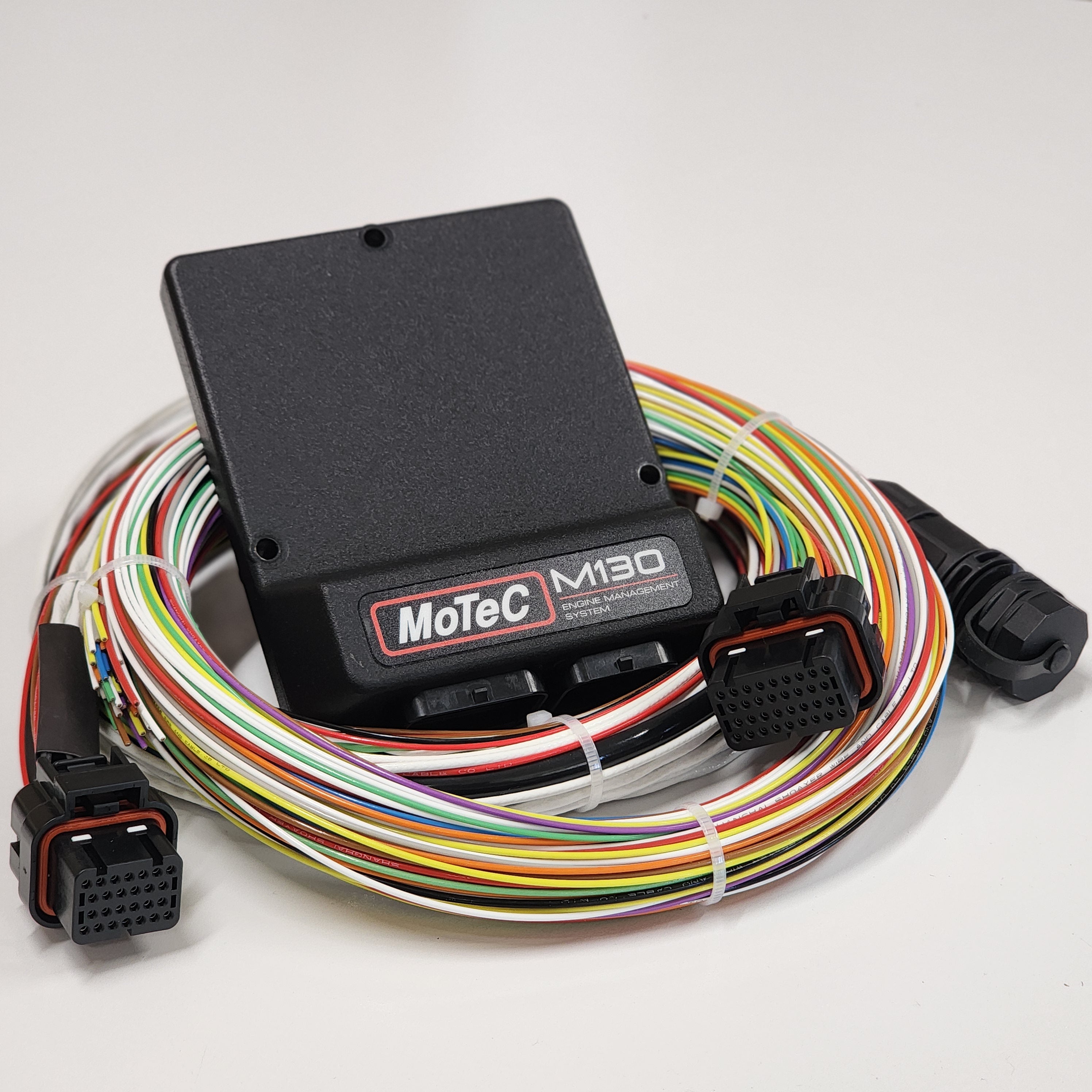

• MoTeC M130 ECU connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Sensors, actuators, and the ECU are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support Modern Motorsport Builds

The MoTeC M130 is a powerful, current-generation motorsport ECU. This loom is designed to support it properly — without shortcuts, compromises, or unnecessary complexity.

Select options above or contact us to discuss custom requirements.

Legal Notice

MoTeC® is a registered trademark of MoTeC Pty Ltd. This product is not affiliated with or endorsed by MoTeC.
