MaxxECU Gen 2 Race Motorsport Wiring Loom

MaxxECU Gen 2 Race Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the MaxxECU Gen 2 Race Engine Control Unit.

This wiring loom is designed for builders who require a modern, professional-grade electrical foundation for a MaxxECU Gen 2 Race–controlled engine. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for advanced motorsport and high-performance applications where heat, vibration, electrical noise, and system complexity are part of the operating environment.

As the second-generation Race ECU in the MaxxECU lineup, the Gen 2 Race builds on the proven Race platform with expanded capability and modern integration. This loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for MaxxECU Gen 2 Race

This loom is pinned exclusively for the MaxxECU Gen 2 Race ECU. Every circuit is allocated correctly for the ECU’s extensive engine management inputs, outputs, power supply, and high-speed CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports accurate sensor data, stable ECU operation, and reliable integration with motorsport peripherals, power management, and CAN-based vehicle systems.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to harsh motorsport environments.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, high-density looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This MaxxECU Gen 2 Race loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for engine layout, sensor selection, power distribution, and CAN integration.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, multi-CAN provisions, and advanced system integrations can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Circuit racing and time attack

• Drag racing and high-performance competition vehicles

• Rally and off-road competition

• Advanced engine swaps and custom builds

• Professional race teams and specialist workshops

This is not a vehicle-specific plug-and-play harness. It is intended for advanced custom installations where control, reliability, and electrical integrity are critical.

What’s Included

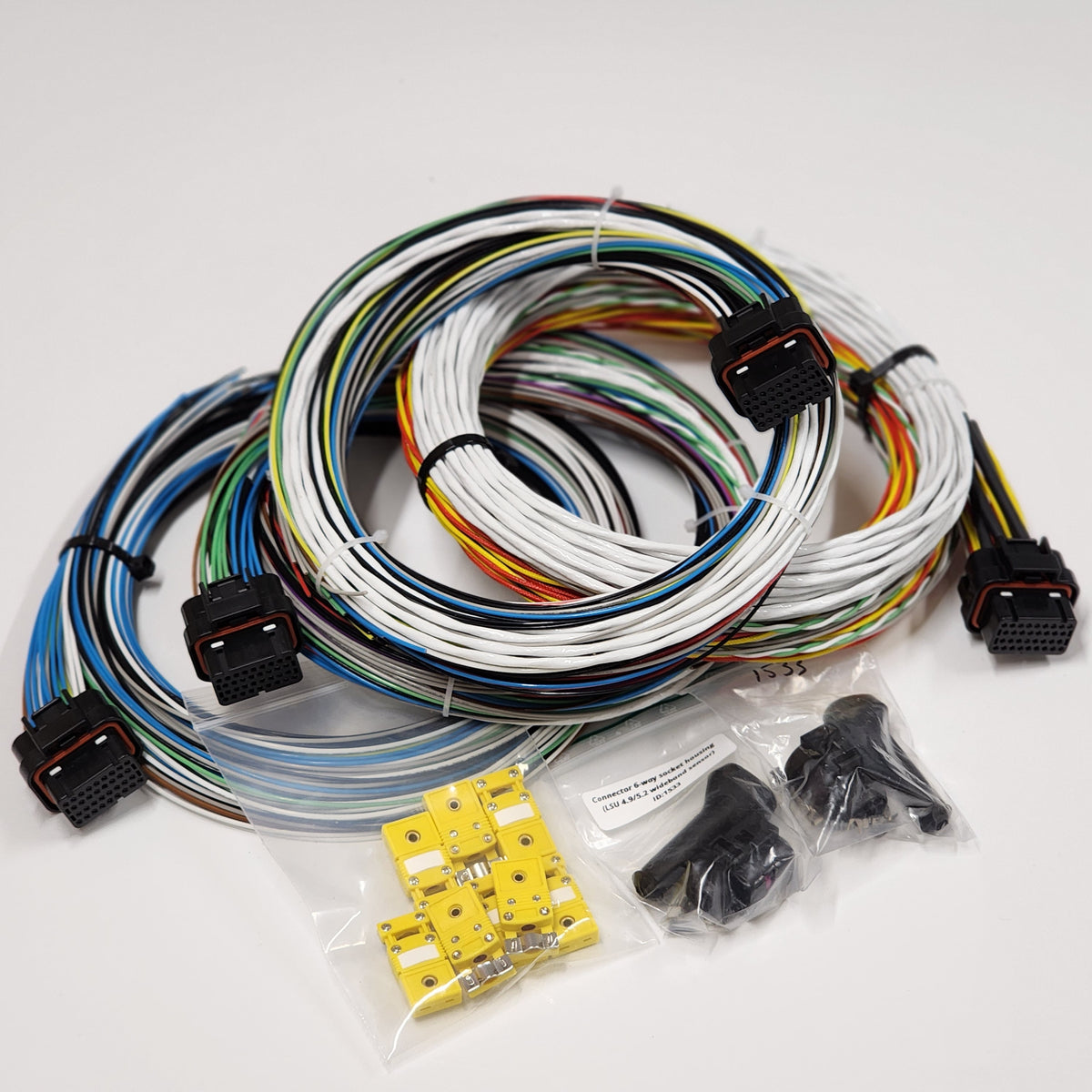

• MaxxECU Gen 2 Race ECU connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Sensors, actuators, PDMs, and the ECU are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a fixed deadline, please contact us prior to ordering.

Built to Support Modern Motorsport Builds

The MaxxECU Gen 2 Race is a modern, high-capability motorsport ECU designed for competitive use. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — in demanding race environments.

Select options above or contact us to discuss custom requirements.

Legal Notice

MaxxECU® is a registered trademark of MaxxECU AB. This product is not affiliated with or endorsed by MaxxECU.
