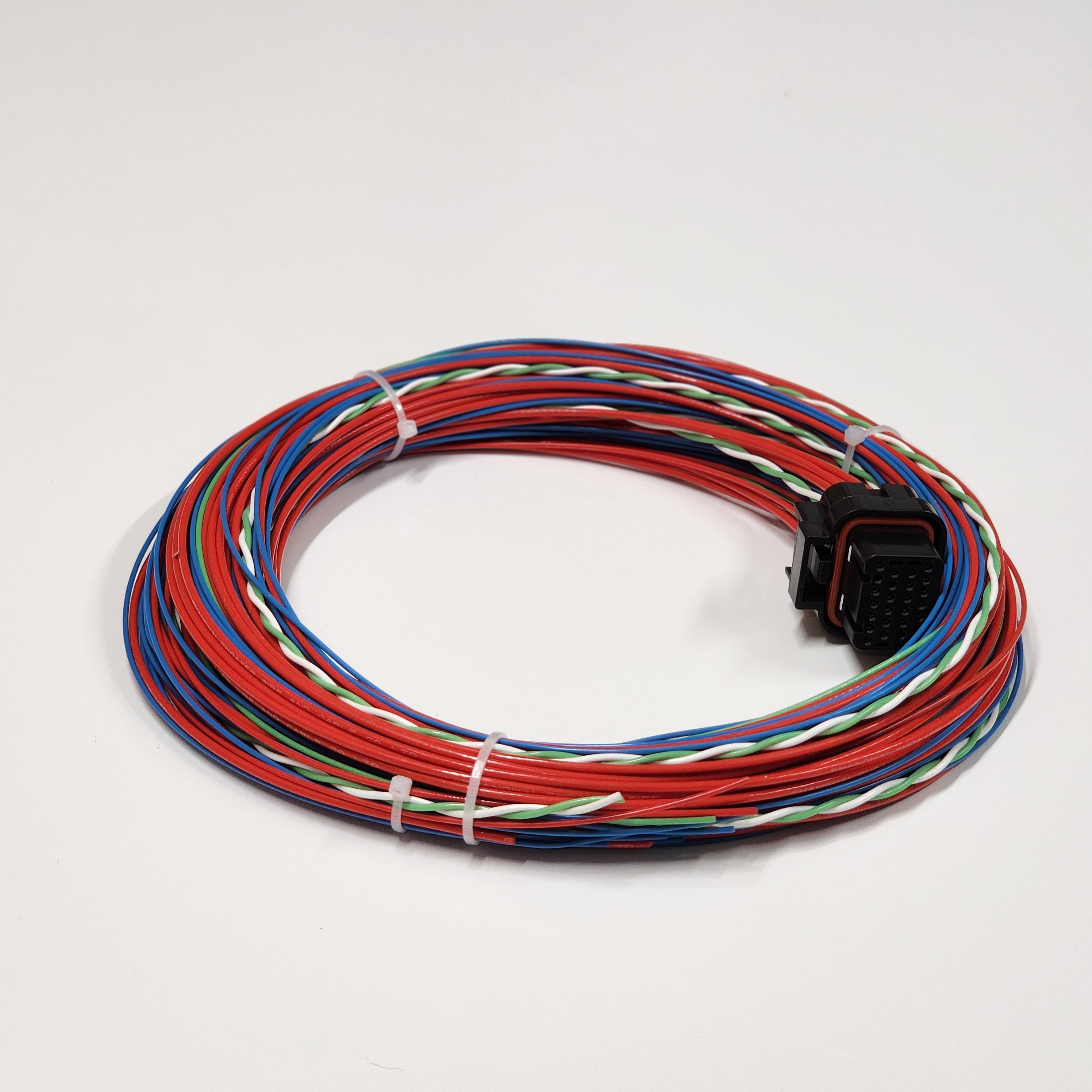

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Link Razor Power Distribution Module (PDM).

This wiring loom is designed for builders who require a reliable, professional-grade electrical foundation for a Link Razor PDM–based power distribution system. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for high-performance and motorsport applications where heat, vibration, electrical noise, and current load are part of the operating environment.

The Link Razor PDM provides programmable, solid-state power management for modern ECU-controlled vehicles, and this loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Link Razor PDM

This loom is pinned exclusively for the Link Razor PDM. Every circuit is allocated correctly for the PDM’s power inputs, outputs, control signals, and CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports reliable power distribution, stable CAN communication, and long-term electrical durability in demanding motorsport and performance applications.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to high-current motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This Link Razor PDM loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for circuit allocation, load grouping, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, output grouping strategies, high-current provisions, and CAN integration requirements can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Motorsport and competition vehicles

• ECU + PDM–based electrical systems

• Circuit racing, drag racing, and time attack

• High-output electrical systems and performance builds

• Professional workshops and motorsport fabricators

This is not a vehicle-specific plug-and-play harness. It is intended for custom installations where control, reliability, and electrical integrity matter.

What’s Included

• Link Razor PDM connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Fuses, loads, ECUs, sensors, and actuators are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support Link’s Power Distribution Systems

The Link Razor PDM is a motorsport-grade power distribution module designed to manage and protect vehicle electrical systems in modern performance and competition builds. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — while meeting professional motorsport wiring standards.

Select options above or contact us to discuss custom requirements.
