Link G5 Voodoo Pro Motorsport Wiring Loom

Link G5 Voodoo Pro Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Link G5 Voodoo Pro Engine Control Unit.

This wiring loom is designed for builders who require an uncompromising, professional-grade electrical foundation for a Link G5 Voodoo Pro–controlled engine and vehicle control system. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for elite-level motorsport and extreme-performance applications where heat, vibration, electrical noise, and very high system complexity are part of the operating environment.

The Link G5 Voodoo Pro represents the most advanced ECU in the Link lineup, delivering maximum processing power, the highest I/O capacity, and extensive multi-CAN system integration. This loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Link G5 Voodoo Pro

This loom is pinned exclusively for the Link G5 Voodoo Pro ECU. Every circuit is allocated correctly for the ECU’s extensive engine management inputs, outputs, power supply, and high-speed multi-CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports accurate sensor data, stable ECU operation, and seamless integration with complex CAN-based systems including dashes, PDMs, expansion modules, traction control, gearbox control, and data logging.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to ultra-high-density, next-generation motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact looms despite extreme I/O density

• Exceptional durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

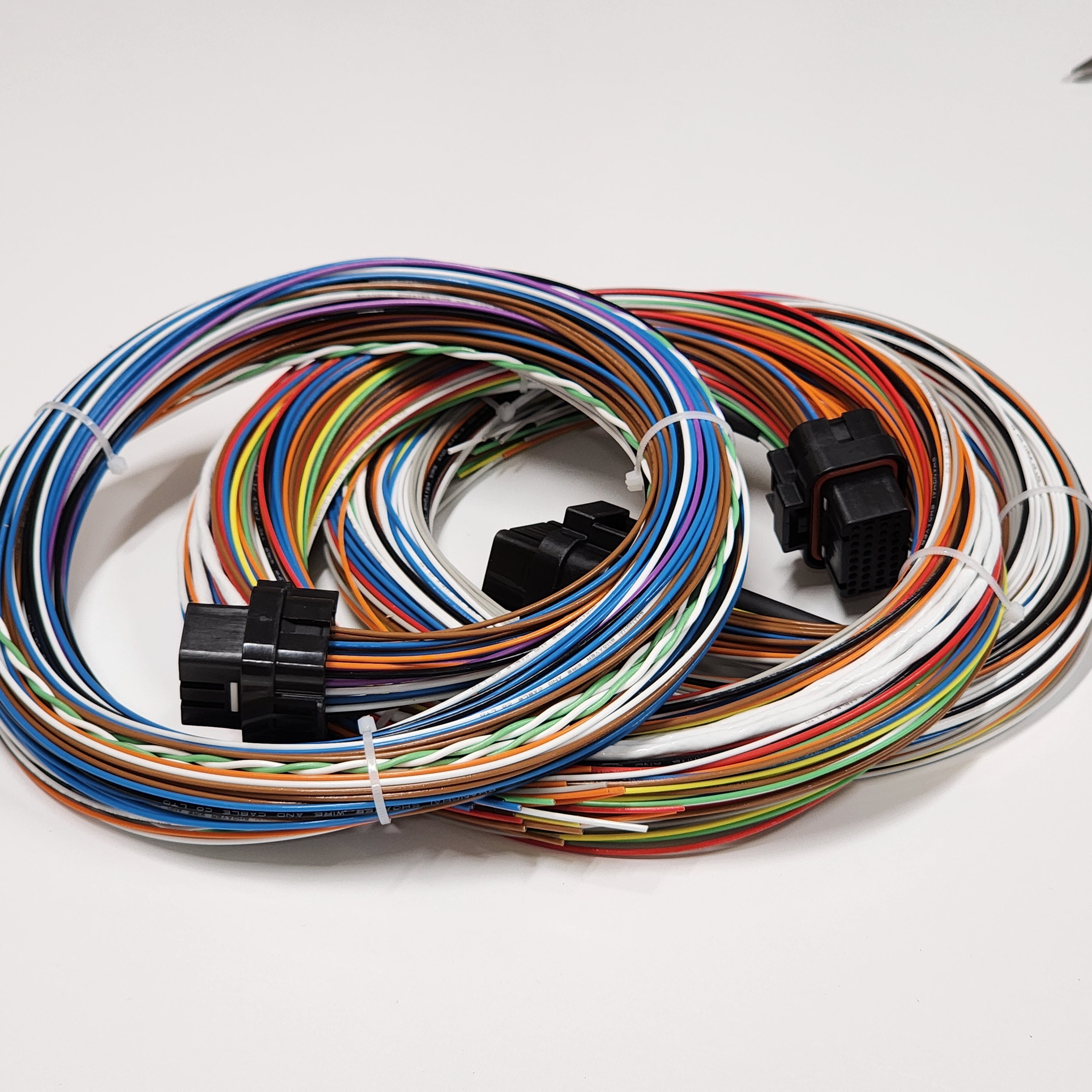

This Link G5 Voodoo Pro loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for the most complex engine layouts, sensor arrays, and advanced vehicle control architectures.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, advanced I/O allocation, multi-CAN architecture planning, and system-specific provisions can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Elite-level motorsport and professional race programs

• Endurance racing, GT, prototype, and top-tier drag racing

• Extremely high-output and highly complex engine management systems

• Full vehicle control systems integrating ECU, PDMs, and displays

• Professional race teams and specialist motorsport workshops

This is not a vehicle-specific plug-and-play harness. It is intended for advanced custom installations where control, reliability, and electrical integrity are critical.

What’s Included

• Link G5 Voodoo Pro ECU connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Sensors, actuators, PDMs, and the ECU are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a fixed deadline, please contact us prior to ordering.

Built to Support Link’s Most Advanced Motorsport Systems

The Link G5 Voodoo Pro is the ultimate Link ECU, engineered for the most demanding motorsport and vehicle control applications. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — while meeting the highest professional motorsport wiring standards.

Select options above or contact us to discuss custom requirements.

Legal Notice

Link ECU® is a registered trademark of Link Engine Management Ltd. This product is not affiliated with or endorsed by Link ECU.
