Emtron SL8 Motorsport Wiring Loom

Emtron SL8 Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Emtron SL8 Engine Control Unit.

This wiring loom is designed for builders who require a high-capability, professional-grade electrical foundation for an Emtron SL8–controlled engine. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for advanced motorsport and high-performance applications where heat, vibration, electrical noise, and increased system complexity are part of the operating environment.

The Emtron SL8 provides significantly expanded I/O capability and advanced control functionality compared to entry-level ECUs, and this loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Emtron SL8

This loom is pinned exclusively for the Emtron SL8 ECU. Every circuit is allocated correctly for the ECU’s extensive engine management inputs, outputs, power supply, and CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports accurate sensor data, stable ECU operation, and reliable integration with CAN-based devices such as dashes, PDMs, and expansion modules.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to high-density, high-channel-count motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms with high I/O density

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This Emtron SL8 loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for engine layout, sensor selection, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, additional I/O provisions, and CAN integration requirements can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Advanced motorsport and competition vehicles

• Circuit racing, time attack, drag racing, and rally

• High-output and complex engine management systems

• Engine swaps and full custom builds

• Professional race teams and specialist performance workshops

This is not a vehicle-specific plug-and-play harness. It is intended for advanced custom installations where control, reliability, and electrical integrity matter.

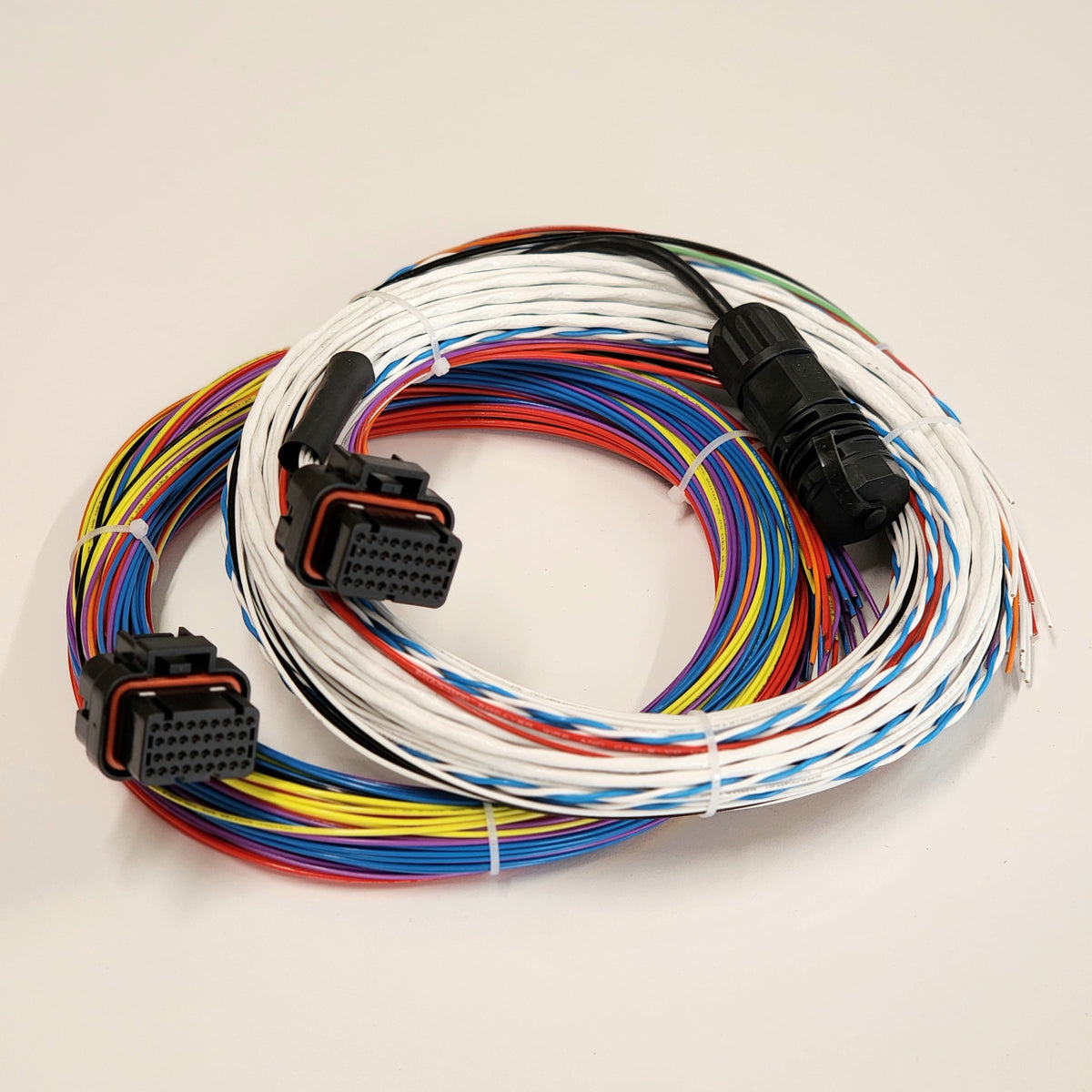

What’s Included

• Emtron SL8 ECU connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Sensors, actuators, PDMs, and the ECU are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a fixed deadline, please contact us prior to ordering.

Built to Support High-End Emtron Systems

The Emtron SL8 is a high-performance motorsport ECU designed for demanding applications requiring extensive I/O and advanced control strategies. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — while meeting professional motorsport wiring standards.

Select options above or contact us to discuss custom requirements.

Legal Notice

Emtron® is a registered trademark of Emtron Australia Pty Ltd. This product is not affiliated with or endorsed by Emtron.
