Emtron KV8 Motorsport Wiring Loom

Emtron KV8 Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Emtron KV8 Engine Control Unit.

This wiring loom is designed for builders who require a robust, professional-grade electrical foundation for an Emtron KV8–controlled engine. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for high-performance and motorsport applications where heat, vibration, electrical noise, and demanding engine configurations are part of the operating environment.

The Emtron KV8 is purpose-designed for V8 and high-cylinder-count engines, and this loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Emtron KV8

This loom is pinned exclusively for the Emtron KV8 ECU. Every circuit is allocated correctly for the ECU’s engine management inputs, outputs, power supply, and CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports accurate sensor data, stable ECU operation, and reliable integration with CAN-based devices such as dashes, PDMs, and expansion modules.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to high-density, high-current motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

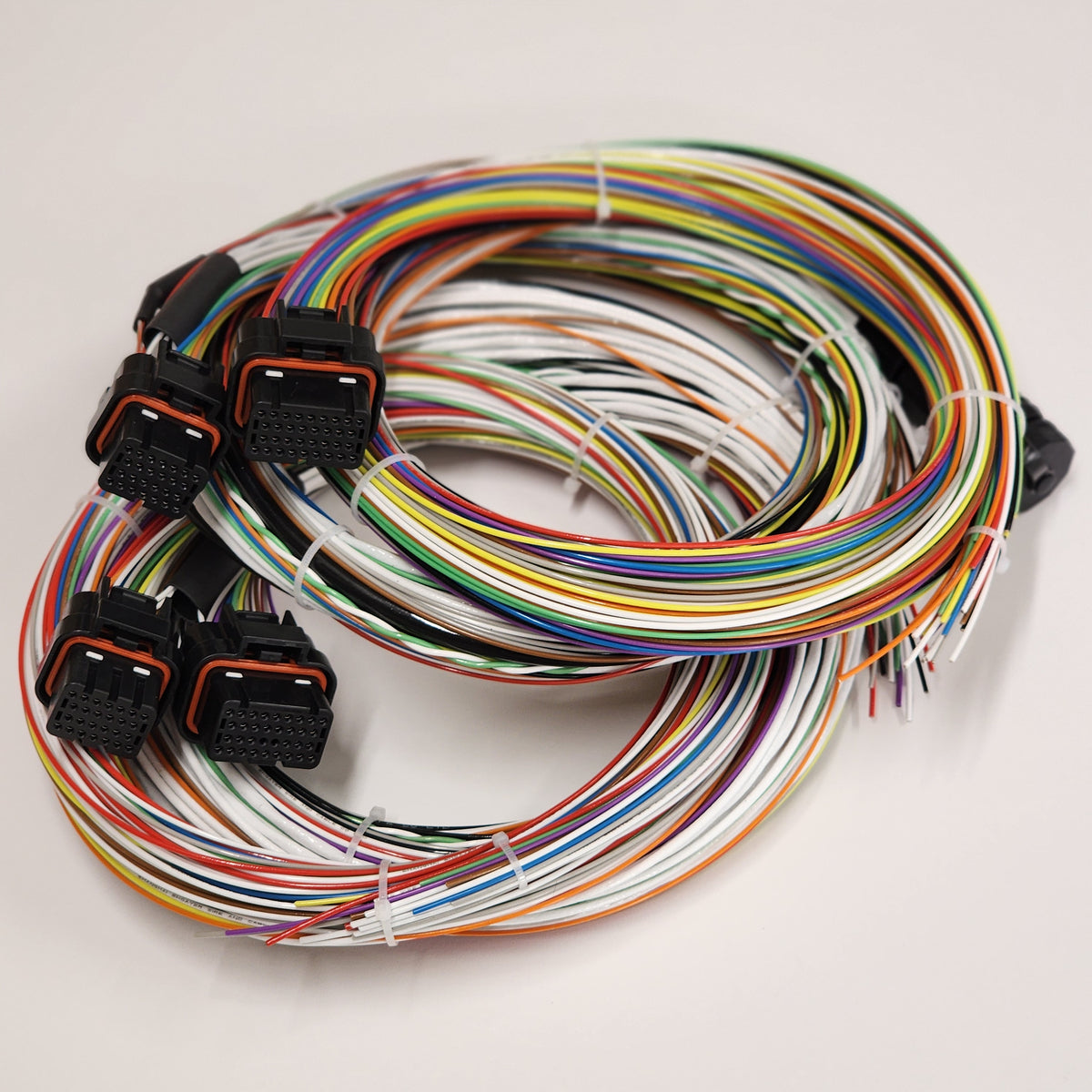

This Emtron KV8 loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for engine layout, sensor selection, injector and ignition configuration, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, additional injector/ignition provisions, and CAN integration requirements can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• V8 and high-cylinder-count engines

• Motorsport and competition vehicles

• Circuit racing, drag racing, and time attack

• Engine swaps and full custom builds

• Professional race teams and performance workshops

This is not a vehicle-specific plug-and-play harness. It is intended for custom installations where control, reliability, and electrical integrity matter.

What’s Included

• Emtron KV8 ECU connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Sensors, actuators, PDMs, and the ECU are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support High-Output V8 Motorsport Systems

The Emtron KV8 is a motorsport ECU designed specifically for demanding V8 and high-output engine applications. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — while meeting professional motorsport wiring standards.

Select options above or contact us to discuss custom requirements.

Legal Notice

Emtron® is a registered trademark of Emtron Australia Pty Ltd. This product is not affiliated with or endorsed by Emtron.
