Black Box P32 PDM Motorsport Wiring Loom

Morristech P32 Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Morristech P32 Power Distribution Module (PDM).

This wiring loom is designed for builders who require a high-capacity, professional-grade electrical foundation for a Morristech P32–based power distribution system. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for advanced motorsport and high-performance applications where heat, vibration, electrical noise, and significant current loads are part of the operating environment.

The Morristech P32 represents the most capable power distribution solution in the Morristech range, designed for complex electrical systems with a high number of outputs and demanding power requirements. This loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Morristech P32

This loom is pinned exclusively for the Morristech P32 PDM. Every circuit is allocated correctly for the PDM’s power inputs, high-current and low-current outputs, control signals, and CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports reliable power delivery, stable CAN communication, and long-term electrical durability in complex motorsport installations.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to high-density, high-current motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk, high-channel-count looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This Morristech P32 loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for circuit allocation, load grouping, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, output grouping strategies, high-current circuit provisions, and CAN integration requirements can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Professional and elite-level motorsport

• Vehicles with complex ECU + PDM electrical architectures

• Circuit racing, time attack, drag racing, and rally applications

• High-output electrical systems and full custom builds

• Professional race teams and specialist motorsport workshops

This is not a vehicle-specific plug-and-play harness. It is intended for advanced custom installations where control, reliability, and electrical integrity are critical.

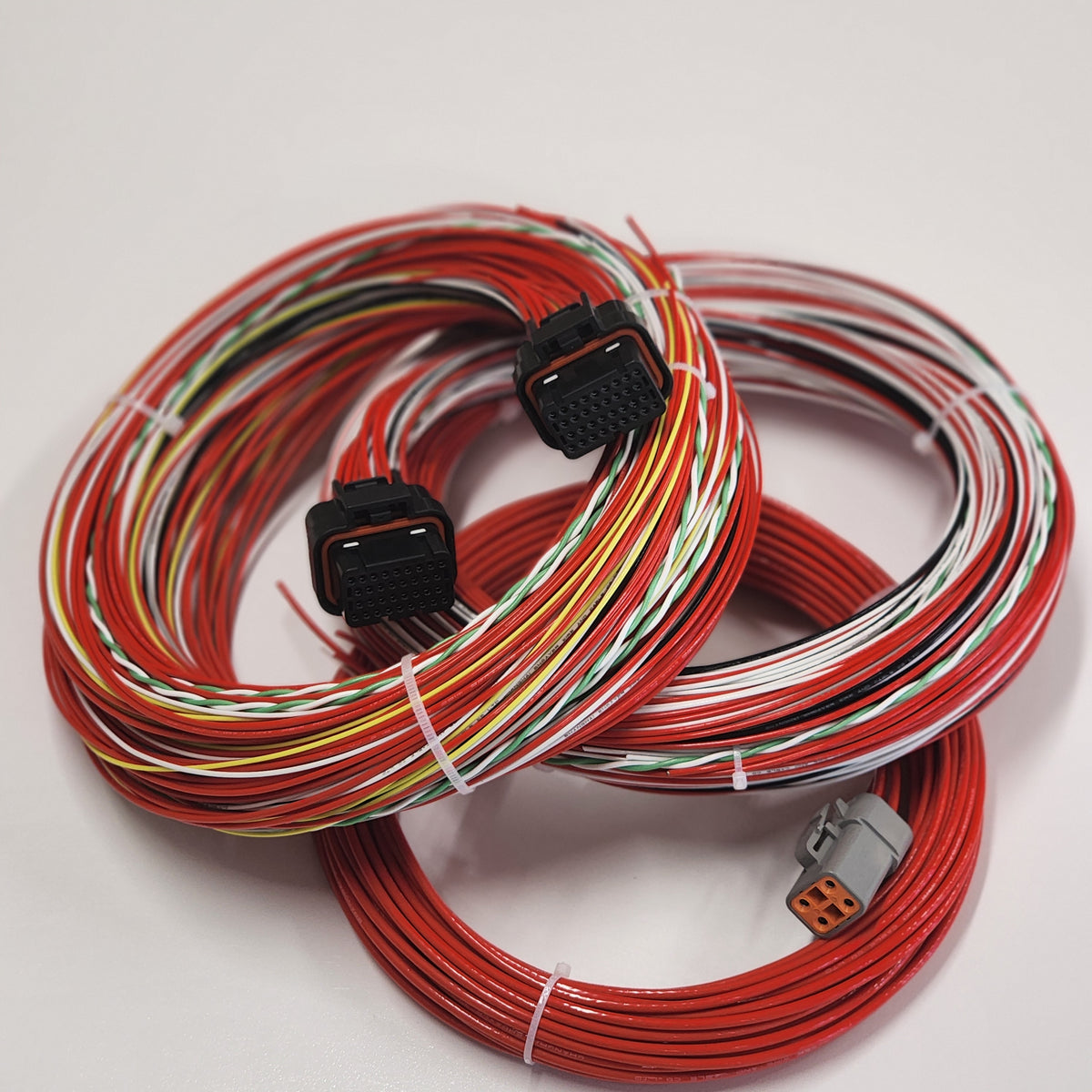

What’s Included

• Morristech P32 PDM connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Fuses, loads, ECUs, sensors, and actuators are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support High-End Motorsport Electrical Systems

The Morristech P32 is the most advanced and highest-capacity PDM in the Morristech lineup, designed for demanding motorsport and performance applications. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — in the most challenging environments.

Select options above or contact us to discuss custom requirements.

Legal Notice

Morristech® is a registered trademark of Morristech Pty Ltd. This product is not affiliated with or endorsed by Morristech.
