Black Box P14 PDM Motorsport Wiring Loom

Morristech P14 Motorsport Wiring Loom

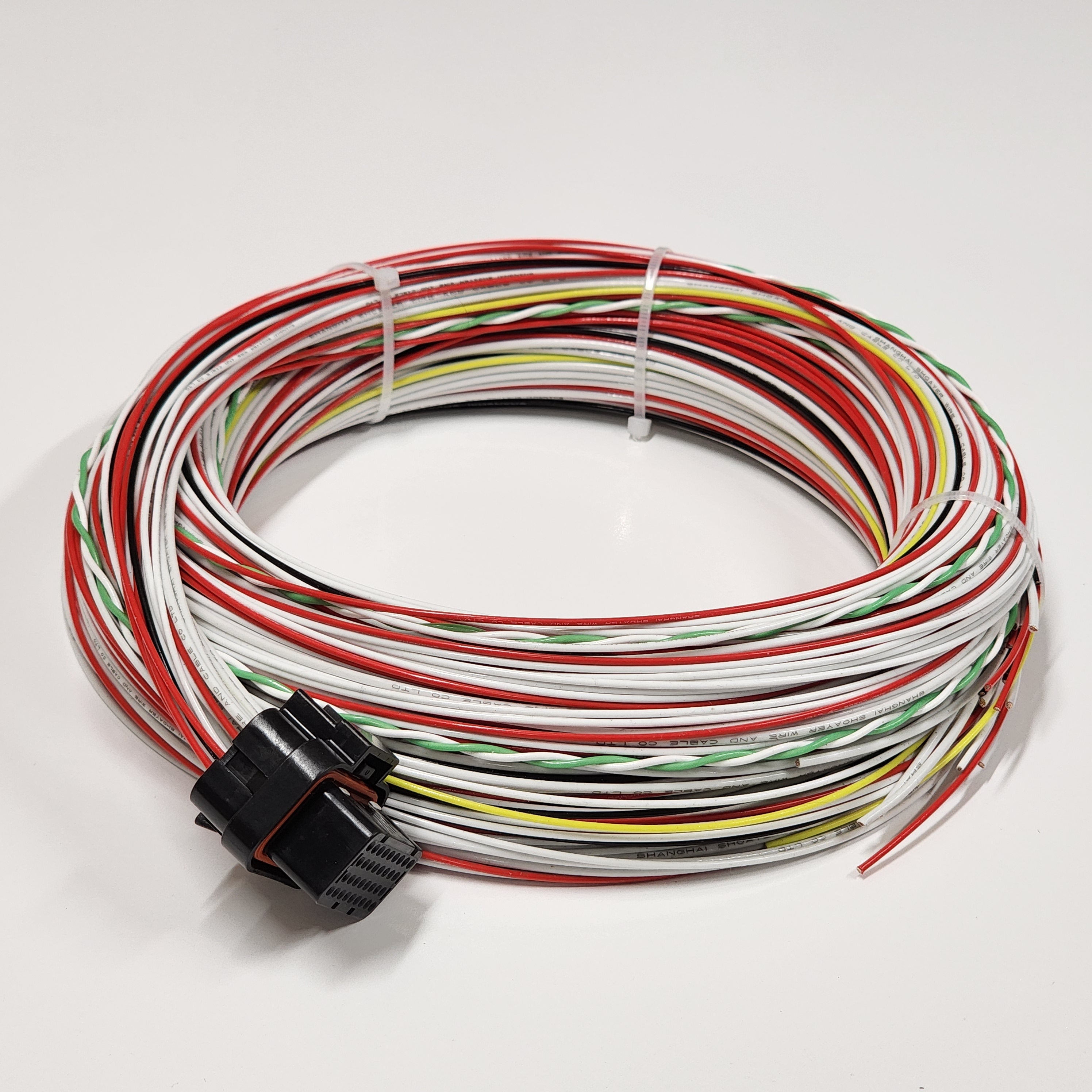

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the Morristech P14 Power Distribution Module (PDM).

This wiring loom is designed for builders who require a reliable, professional-grade electrical foundation for a Morristech P14–based power distribution system. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for high-performance and motorsport applications where heat, vibration, electrical noise, and current load are part of the operating environment.

The Morristech P14 offers increased output capacity and flexibility over smaller PDMs, and this loom removes the compromises commonly found in universal or automotive-grade wiring.

Designed Specifically for Morristech P14

This loom is pinned exclusively for the Morristech P14 PDM. Every circuit is allocated correctly for the PDM’s power inputs, outputs, control signals, and CAN communications — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports reliable power delivery, stable CAN communication, and long-term electrical durability in demanding motorsport environments.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to high-current motorsport wiring systems.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This Morristech P14 loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for circuit allocation, load grouping, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, wire lengths, output grouping strategies, and CAN integration provisions can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Motorsport and competition vehicles

• ECU + PDM–based electrical systems

• Circuit racing, drag racing, and time attack

• High-output electrical systems and custom builds

• Professional workshops and motorsport fabricators

This is not a vehicle-specific plug-and-play harness. It is intended for custom installations where control, reliability, and electrical integrity matter.

What’s Included

• Morristech P14 PDM connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

Fuses, loads, ECUs, sensors, and actuators are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support Advanced Motorsport Electrical Systems

The Morristech P14 is a high-capacity, motorsport-grade power distribution module designed for modern ECU-controlled vehicles. This loom is built to support it properly — without shortcuts, compromises, or unnecessary complexity — in demanding competition environments.

Select options above or contact us to discuss custom requirements.

Legal Notice

Morristech® is a registered trademark of Morristech Pty Ltd. This product is not affiliated with or endorsed by Morristech.
