AIM Strada MXG 1.3 Motorsport Wiring Loom

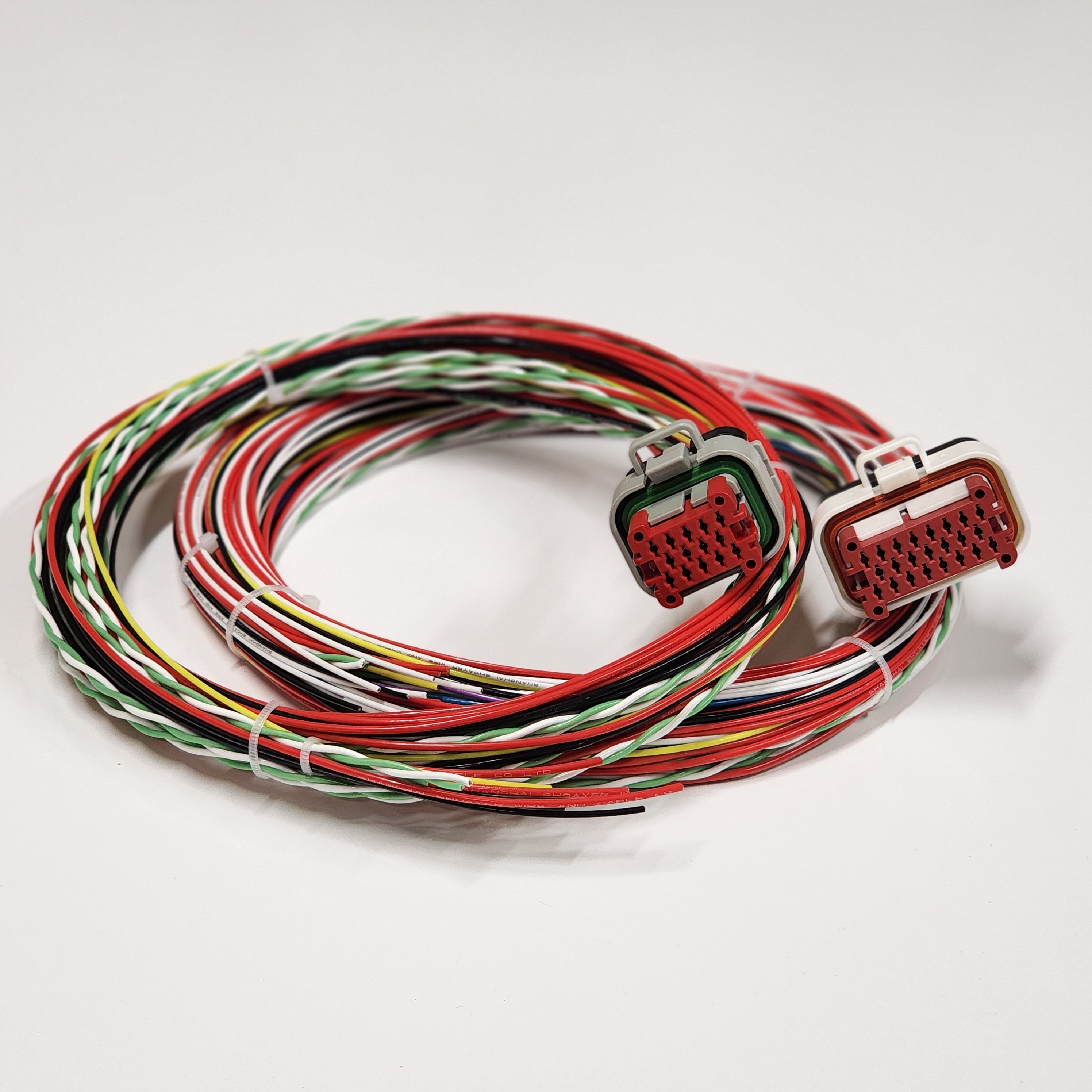

AiM MXG 1.3 Strada Motorsport Wiring Loom

Motorsport-grade ETFE (MIL-W-22759/16) wiring loom engineered specifically for the AiM MXG 1.3 Strada Digital Display and Data Logger.

This wiring loom is designed for builders who require a reliable, professional-grade electrical foundation for an AiM MXG 1.3 Strada–based dash and data logging system. Hand-built using MIL-W-22759/16 motorsport-grade ETFE wire, it is intended for motorsport and high-performance applications where heat, vibration, electrical noise, and CAN communication reliability are critical.

The MXG 1.3 Strada is widely used across circuit racing, track days, and high-end performance builds, and this loom removes the compromises commonly found in universal or automotive-grade dash wiring.

Designed Specifically for AiM MXG 1.3 Strada

This loom is pinned exclusively for the AiM MXG 1.3 Strada. Every circuit is allocated correctly for the display’s power supply, inputs, outputs, CAN communications, and data logging functions — with no universal pinouts, repurposed circuits, or guesswork.

The result is a clean, predictable wiring system that supports stable CAN communication, accurate data acquisition, reliable display operation, and long-term durability.

Built Using Motorsport-Grade ETFE Wire (MIL-W-22759/16)

MIL-W-22759/16 ETFE wire was originally developed for aerospace and military applications and is ideally suited to harsh motorsport environments and high-vibration installations.

Key benefits include:

• Excellent resistance to heat, fuels, oils, and automotive chemicals

• Thin, lightweight insulation for compact, low-bulk looms

• High durability under vibration and continual movement

• Reduced risk of insulation degradation over time

This wire is selected for reliability — not cost.

Terminated or Unterminated Options

This MXG 1.3 Strada loom is supplied in an unterminated (flying lead) configuration as standard, allowing complete flexibility for dash placement, sensor integration, CAN network layout, and routing.

A pin placement sheet showing wire numbers is available to download to assist with installation.

Custom terminations, CAN configurations, sensor breakouts, and additional provisions can be discussed prior to ordering if required.

Suitable Applications

This loom is suitable for:

• Circuit racing and time attack

• Track day and club-level motorsport

• High-performance street and competition vehicles

• ECU-integrated CAN dash systems

• Professional workshops and motorsport fabricators

This is not a vehicle-specific plug-and-play harness. It is intended for custom installations where data accuracy, reliability, and electrical integrity matter.

What’s Included

• AiM MXG 1.3 Strada display connector(s)

• Pre-wired ETFE (MIL-W-22759/16) wiring loom

• Built to order and quality checked prior to dispatch

The display unit, ECUs, sensors, and GPS modules are not included.

Lead Time

Each loom is hand-built to order. Typical lead time is displayed at checkout and may vary during busy periods.

If your build has a deadline, please contact us prior to ordering.

Built to Support Professional Data & Display Systems

The AiM MXG 1.3 Strada is a professional motorsport display and data logger. This loom is designed to support it properly — without shortcuts, compromises, or unnecessary complexity — in demanding race and performance environments.

Select options above or contact us to discuss custom requirements.

Legal Notice

AiM® is a registered trademark of AiM Sportline S.r.l. This product is not affiliated with or endorsed by AiM.
